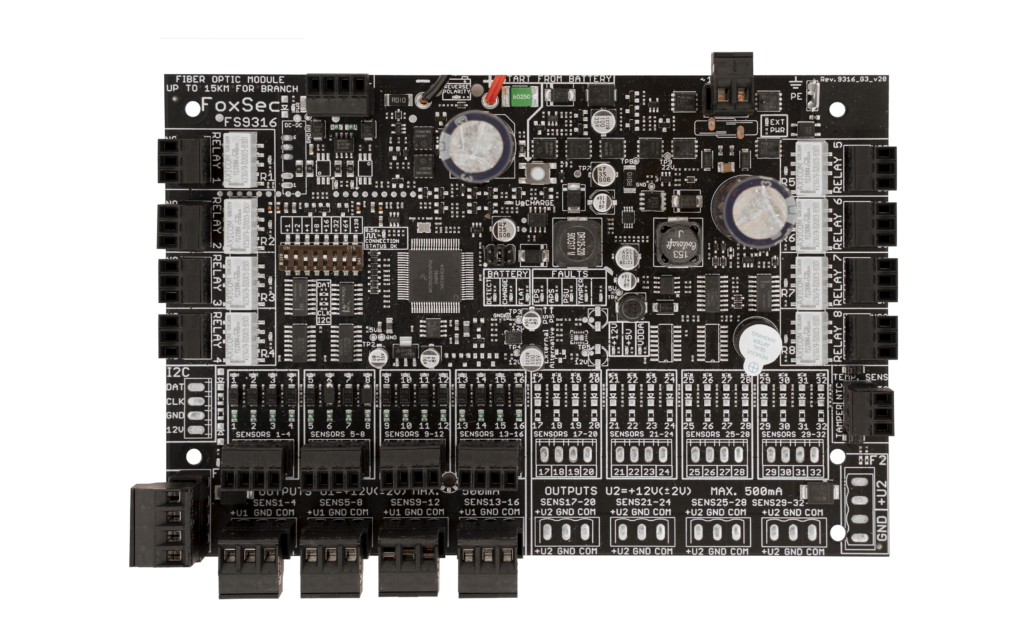

FS9316/8

Features

16 zone inputs
Eight relay outputs
Optional Fiber optic data-line up to 20 km
12V sensor power output with short circuit protection
Temperature sensor input up to 10 m cable lenght
Beeper for easy module identification
Metal case 290 x 280 x 80 mm
Battery status and fault indicators
Battery backup capacity test and reverse polarity
protection with indication
Power supply unit 12VDC, 0,5A
