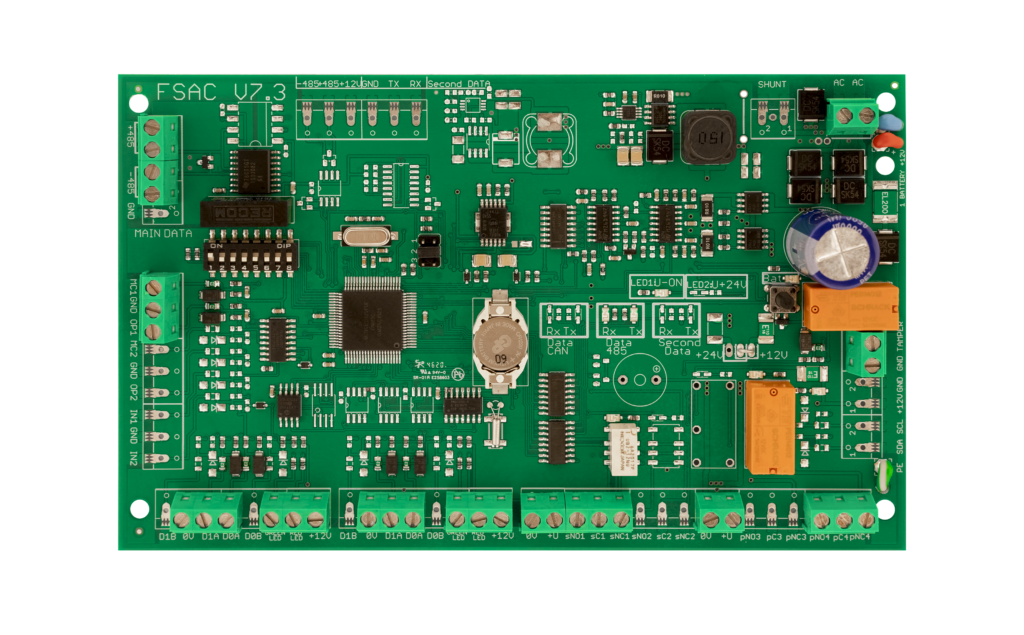

FS7301

Door controllers

PRO series

Features

1 door (2 readers)
Up to 1850 card users and 2,000 recent events in the controller memory
1 programmable relay output
2 Wiegand inputs
Anti-passback and more than 50 other special functions
Optical isolation
Metal case 290 x 280 x 80 mm
Power supply unit 12VDC, 2A/3A
Lock 12VDC/24VDC
Battery control
Card mode, card+ PIN mode, locked mode, open mode, only PIN mode

Optional features:

RS485(OSDP) input

Supported software

FoxSec Web
FoxSec SmartPass
FoxSec Net

Download

Specification Brochure
